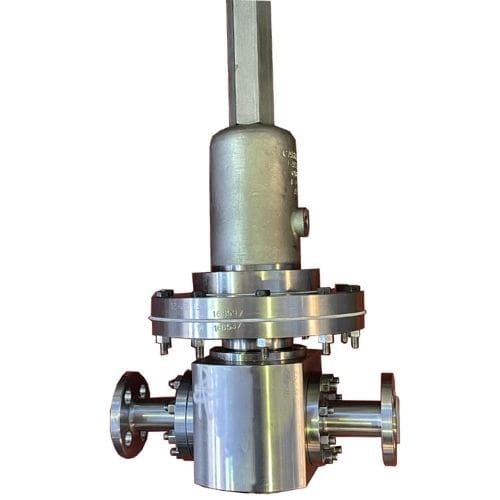

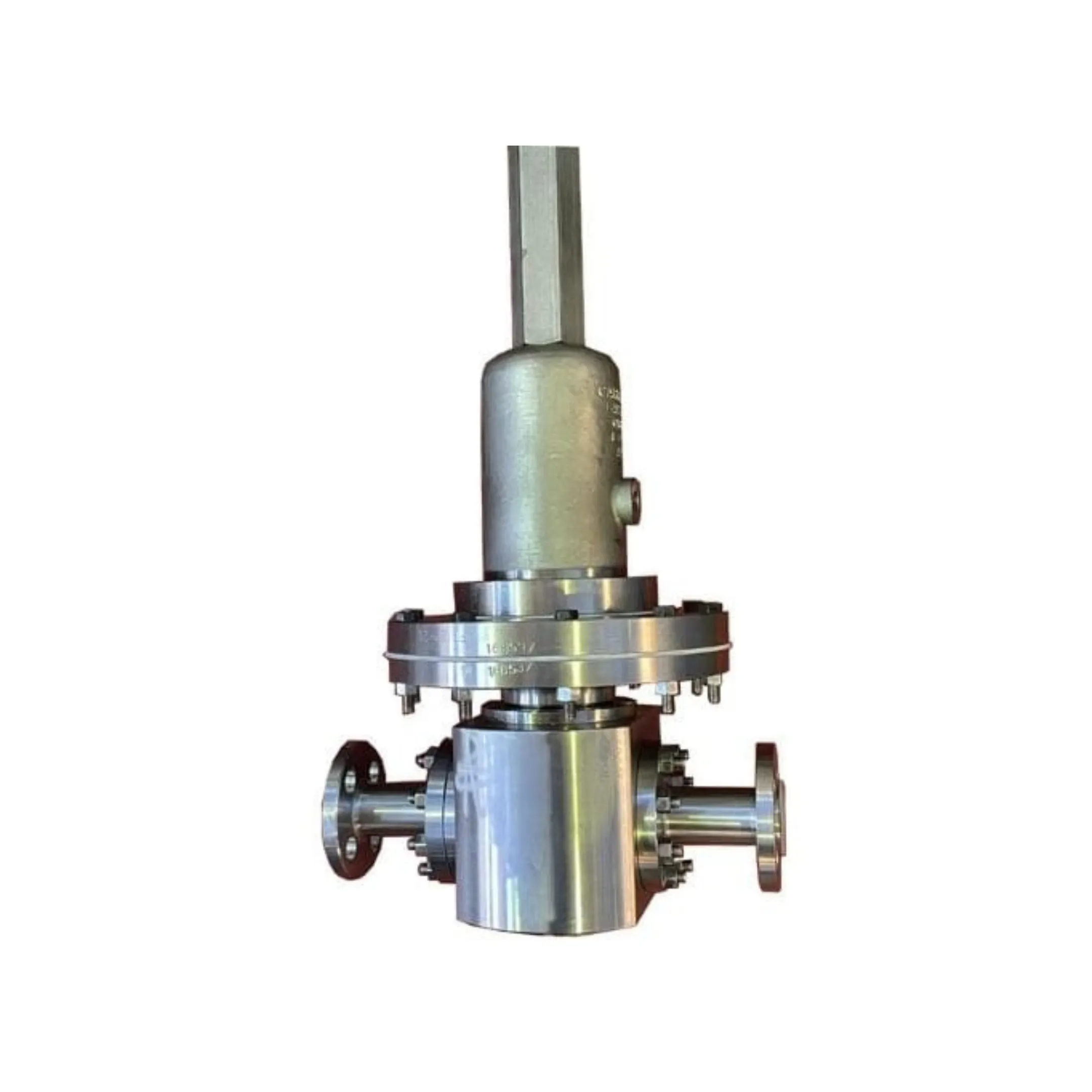

Carraro – Uban Direct Operated Pressure Reducing Valve

UBAN / UBANS

• Direct action Regulator, reduction, back pressure and differential, pressure <= DN 50
• Single seat
• ARAMCO APPROVED SINCE 2015

Additional Information
Funtion: Differential, Reducing

Diameters: From ½” up to 2”

Connections: Flanged (ANSI or PN), Threaded (F-NPT or GAS/BS)

Seat: Single

Max Rating: Inlet ANSI 1500 / Outlet ANSI 600

CV: From 0,031 up to 12,8

Body Material: “exotic” materials, carbon steel, stainless steel

Trim Material: “exotic” materials, stainless steel (std)

Diaphragms: EPDM, FKM, other, polychloroprene, stainless steel

Max Inlet Pressure: 280 barg (threaded version up to 1″)

Regulated Pressure Range: 0,0012 – 52 barg

Min Temperature: -196°C

Max Temperature:300°C
